| Description |
Value |
| model |
RSV2545A |
| frequency
range in MHz |
2390
~ 2700 |
| supply
voltage in Vcc tolerance in % |
5,0
± 10 |
| tuning
voltage in V |
0,5
~ 4,5 |
| operating
temperature range in °C |
-40
~ +85 |
| storage
temperature in °C |
-40
~ +85 |
| storage
humidity in % |
5
~ 95 |
| electrical
characteristics at +25°, humidity in % |
60 |
| supply
voltage typ. in V |
5 |
| current
typ. in mA |
25 |
| output
level min. in dBm |
3,5 |
| output
level typ. in dBm |
6,0 |
| output
level max.. in dBm |
8,5 |
| phase
noise (C)/N) in dBc/HZ at 1 kHz ~ 1 MHz |
-70
~ -140 |
| 2nd
harmonic typ. in dBc |
-20 |
| 2nd
harmonic max. in dBc |
-10 |
| tuning
sensitivity min. in MHz/V |
80 |
| pulling
typ. in MHz |
3,0 |
| pulling
max. in MHz |
6,0 |
| pushing
typ. in MHz |
0,5 |
| pushing
max. in MHz |
1,0 |

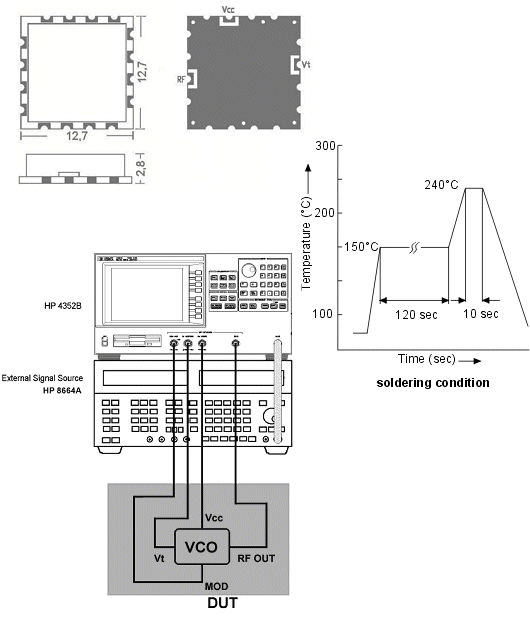

| size
l/w/h in mm |
12,7/12,7/2,8 |
| contents
of reel in pcs. |
1000 |
|
