| Description |
Value |
| model |
RSV1850A |
| frequency
range in MHz |
1800
~ 1900 |
| supply
voltage in Vcc tolerance in % |
5,0
± 10 |
| tuning
voltage in V |
0,7
~ 4,3 |
| operating
temperature range in °C |
-40
~ +85 |
| storage
temperature in °C |
-40
~ +85 |
| storage
humidity in % |
5
~ 95 |
| electrical
characteristics at +25°, humidity in % |
65 |
| supply
voltage typ. in V |
5 |
| current
max. in mA |
22 |
| output
level min. in dBm |
4 |
| output
level max.. in dBm |
9 |
| phase
noise (C)/N) in dBc/HZ at 10 kHz ~ 1 MHz |
-96
~ -140 |
| 2nd
harmonic typ. in dBc |
-10 |
| tuning
sensitivity min. in MHz/V |
28 |
| pulling
typ. in kHz |
800 |
| pulling
max. in kHz |
2000 |
| pushing
typ. in kHz |
500 |
| material
PC.board = glass cloth epoxide resin |
yes |
| material:
case = nickel silver-sheets (C7701) |
yes |

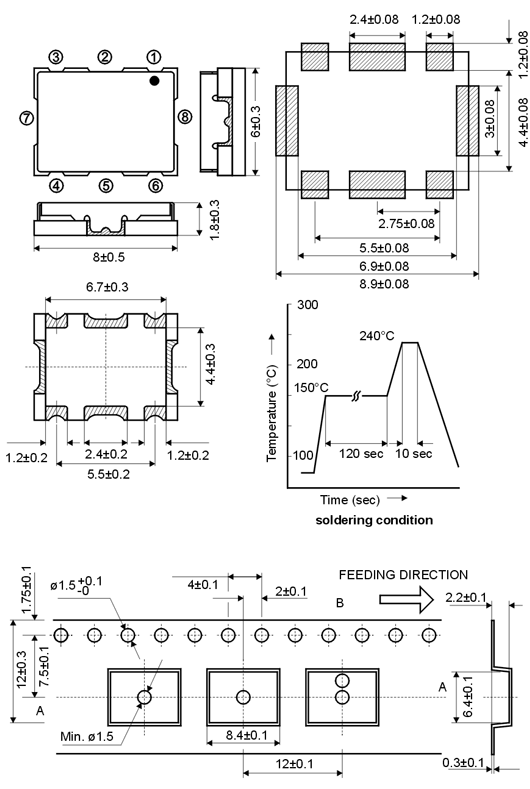

| size
l/w/h in mm |
8,0/6,0/1,8 |
| contents
of reel in pcs. |
1000 |
|
