PECLCSXO-67     50,0 ~ 200,0 MHz


Description Value
PECL - Positive Emitter Coupled Oscillator yes
frequency range in MHz 50,0 ~ 200,0
frequency stability over all conditions KXO-67A in ppm ± 100
frequency stability over all conditions KXO-67B in ppm ±50
frequency stability over all conditions KXO-67D in ppm ±25
storage temperature range in °C -50 ~ +125
operating temperature range in °C 0 ~ +70
symmetry (at crossing point) in % 40 ~ 60
rise and fall time (20% ~ 80% of amplitude) in ns max. 0,8
start up time max. in ms 10
"O" level max. Vdd to +1,63V
"1" level min. Vdd to +1,02V
disable delay time in ns max. 100
enable delay time in ms max. 10
input voltage (Vdd) in V DC ± tolerance in % +3,3 / ±5
supply voltage in V -0,5 ~ +7,0
input current (Pin#1 = Open or VIH) in mA max. 70
load (Vdd to +2,0V) in Ohm 50
stand-by control voltage VIH in Vdd min. +0,7
stand-by control voltage VIL in Vdd max. +0,3
stand by current (Pin#1=VIL) in µA max. 10
RMS jitter (12 kHz to 20 MHz band) in ps max. 1
aging (first year) in ppm max. ±5
lead-free yes

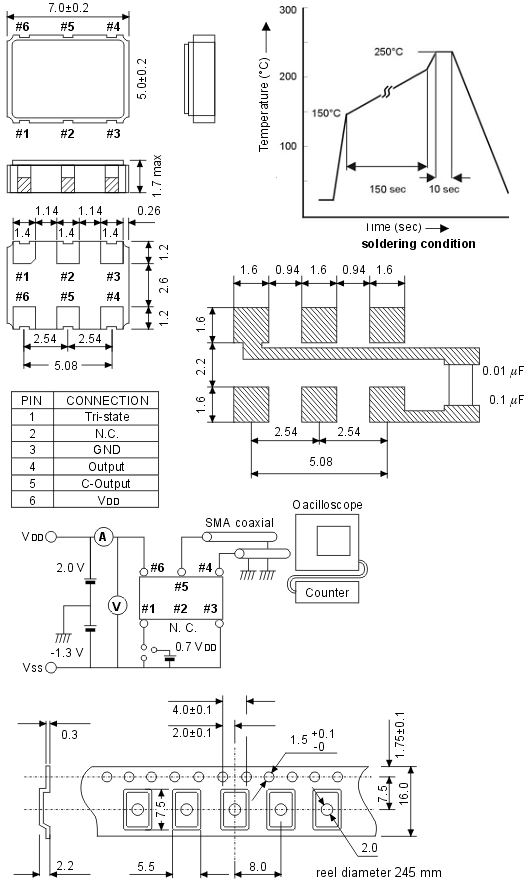

size l/w/h in mm 7,0 / 5,0 / 1,7
contents of reel in pcs. 1000
