◆VCTCXO→CSVCTCXO-126-20
12,60 ~ 20,0 MHz
|
|
|
| Description |
Value |
| frequency
range in MHz |
12,60
~ 20,0 |
| output
load in Kohm // pF |
10
// 10 |
| output
level in Vp-p min. |
0,8 |
| output
waveform clipped sine-wave (DC-cut) |
yes |
| frequency
stability vs. temp. range in ppm |
±2,0 |
| frequency
stability vs. input voltage in ppm max. at ±3V DC
in % |
±0,2
/ ±5 |
| frequency
stability vs. load at 10 Kohm in ppm max. ± 10% |
±0,2 |
| frequency
stability vs. load at 10 pF in ppm max. ± 10% |
±0,2 |
| frequency
stability vs. aging per year max. at +25°C in ppm |
±
1,0 |
| operating
temperature range in °C |
-30
~ +80 |
| input
voltage Vcc in DC V ± tolerance in % |
+3
/ ±5 |
| input
current typ.in mA max. |
1,2 |
| input
current (no load) in mA max. |
20 |
| frequency
adjustment voltage control in ppm min. positiv
slope |
±5 |
| SSB
phase noise at 1kHz offset in dBc/Hz max. |
-120 |
| start
up time max. in ms |
3 |
| harmonic
distortion in dBc max. |
-5 |
| storage
temperature in °C |
-40
~ +85 |
| pin
connection no. |
1,
2, 3, 4 |

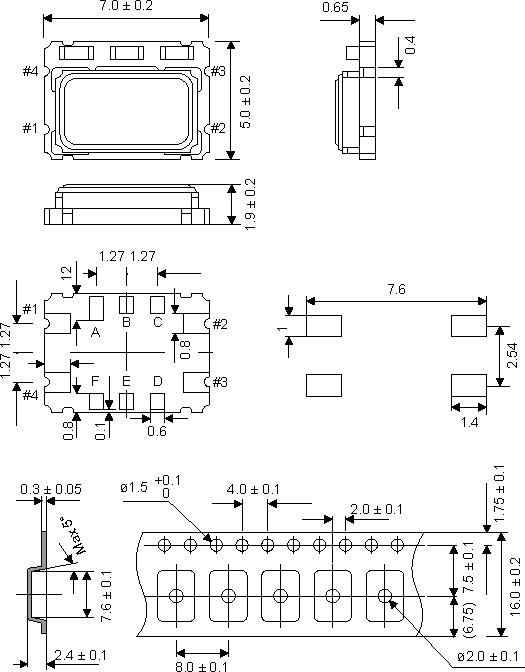

| size
l/w/h in mm |
7,0/5,0/1,9 |
| contents
of reel in pcs. |
2000 |
|
|
|
|
|
|
