VCTCXOCSVCTCX0-12-260
                  12,0 ~ 26,0 MHz

Description Value
frequency range in MHz 12,0 ~ 26,0
output load in Kohm // pF 10 // 10
output voltage in Vp-p min. 0,8
output waveform clipped sine-wave yes
frequency stability vs. temp. range at -10°C ~ +60°C in ppm ± 1,5 ~ ± 5,0
frequency stability vs. temp. range at -20°C ~ +70°C in ppm ± 2,0 ~ ± 5,0
frequency stability vs. temp. range at -40°C ~ +85°C in ppm ± 2,0 ~ ± 5,0
frequency stability vs. input voltage in ppm max. ± 5% 0,3
frequency stability vs. load at 10 Kohm in ppm max. ± 10% ± 0,3
frequency stability vs. load at 10 pF in ppm max. ± 10% ± 0,3
frequency stability vs. aging per year max. at +25°C in ppm ± 1,0
operating temperature range in °C -10 ~ +60
operating temperature range in °C -20 ~ +70
operating temperature range in °C -40 ~ +85
input voltage Vcc in DC V ± tolerance in % +3 / ±5
frequency control voltage (VC) positiv transfer characteristic in Vdc + 1,5 ± 1
input current typ.in mA max. 1,2
input current (no load) in mA max. 2
frequency adjustment voltage control in ppm min. positiv slope ± 5
frequency deviation in ppm min. over control voltage ± 5
start up time max. in ms 3
aging at +25°C/year in ppm max. ± 1
pin connection #  VC
pin connection #  GND
pin connection #  Output
pin connection # Vcc
lead-free yes

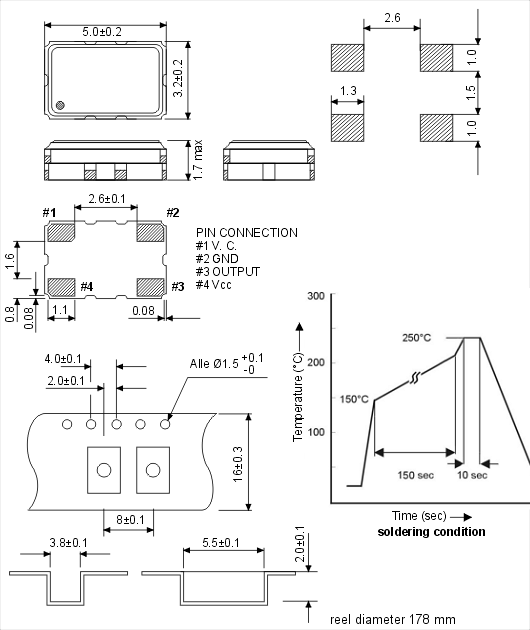

size l/w/h in mm 5,0 / 3,2 / 1,7
contents of reel in pcs. 1000
reel diameter in mm 178
