TCXOCSTCXO-10-27     10,0 ~ 27,0 MHz


Description Value
frequency range in MHz 10,0 ~ 27,0
output load in Kohm // pF 10 // 10
output level in Vp-p min. 0,7
output waveform clipped sine-wave (DC-cut) yes
frequency stability vs. temp. range in ppm ± 2,5
frequency stability vs. input voltage in ppm max. at Vcc in % ± 0,3 / ±5
frequency stability vs. load at 10 Kohm in ppm max. ± 10% ± 0,3
frequency stability vs. load at 10 pF in ppm max. ± 10% ± 0,3
frequency stability vs. aging per year max. at +25°C in ppm ± 1,0
operating temperature range in °C -30 ~ +75
input voltage Vcc in DC V ± tolerance in % 3 ~ 5 / ±5
input current in mA max. 2 (no load)
frequency adjustment internal trimmer in ppm. min. ± 0,3
SSB phase noise in dBc/Hz at 1 kHz offset -130
start up time max. in ms 5
harmonic distortion in dBc max. -5
storage temperature in °C -40 ~ +85
pin connection no. 1, 2, 3, 4
lead-free yes

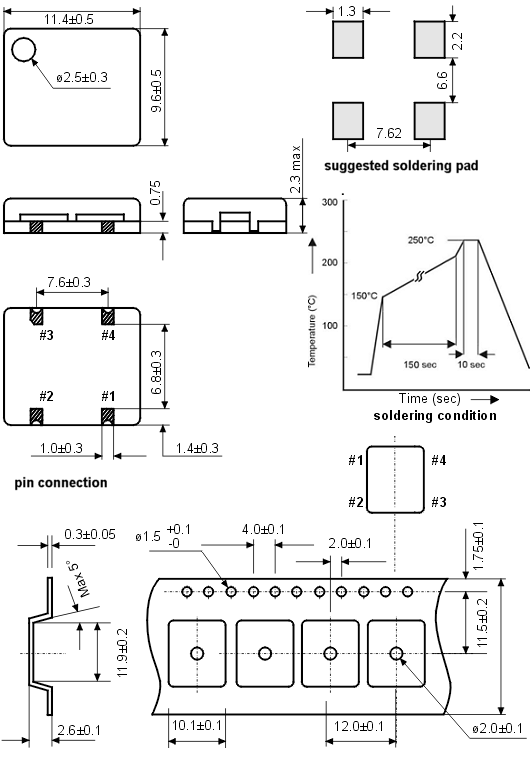

size l/w/h in mm 11,4/9,6/2,5
contents of reel in pcs. 2000
