VSXOCSVSXO-1544-77760
                  1,544 ~ 77,760 MHz

Description Value
frequency range in MHz 1,544 ~ 77,760
frequency stability at -10° ~ +60°C in ppm ±10 ~ ±50
frequency stability at -10° ~ +70°C in ppm ±20 ~ ±50
frequency stability at -40° ~ +85°C in ppm ±30 ~ ±50
storage temperature range in °C -40 ~+85
operating temperature range in °C -10 ~ +60
operating temperature range in °C -40 ~ +85
symmetry at ½ Vdd level in % 50 ±5
rise & fall time (max.) 20% ~ 80% Vdd level in ns 5
start up time max. in ms 10
output level VOH of Vdd min. in % 90
output level VOL of Vdd min. in % 10
input voltage (Vdd) in V ± tolerance in % 3,3 ±5
input current (no load) at 1,544 ~ 20,0 MHz in mA max. 10
input current (no load) at 20,1 ~ 40,0 MHz in mA max. 15
input current (no load) at 40,1 ~ 77,760 MHz in mA max. 25
output load at CMOS in pF 15
control voltage (Vc) in V 0 ~3,3
pulling range min. in ppm ±10 ~ ±150
frequency linearity in % max. ±15
period jitter: absolut in ps max. ±100
period jitter: one sigma in ps max. ±10
tristate control #2: open = #4: output
tristate control #2: +2,20V min. = #4: output
tristate control #2: +0,80V max. = #4: high impedance

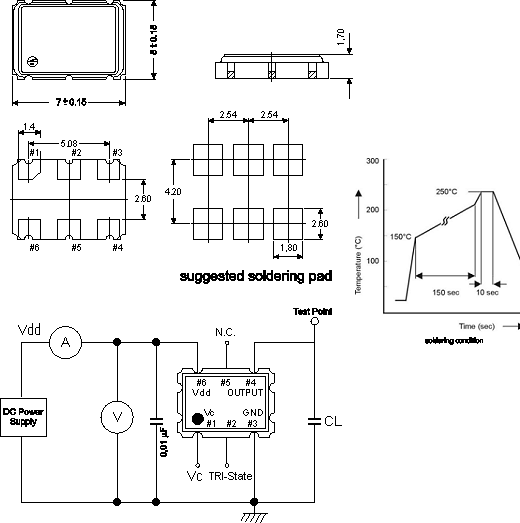

size l/w/h in mm 7,0/5,0/1,70
lead-free yes
