| ◆SPXO→CXO-10-181
1,0 ~ 181,0 MHz |
|
|
| Description |
Value |
| frequency
range in MHz |
1,0
~ 181,0 |
| frequency
stability at -20° ~ +70°C in ppm |
±50 |
| frequency
stability at -40° ~ +85°C in ppm |
±100 |
| operating
temperature range in °C |
-20
~ +70 |
| operating
temperature range in °C |
-40
~ +85 |
| storage
temperature in °C |
-55
~ +125 |
| symmetry
at 1,0 ~ 70,0 MHz at ½ Vcc level in % |
45/55
± 10 |
| symmetry
at 70,1~ 125,0 MHz at ½ Vcc level in % |
40/60
± 10 |
| rise
& fall time in ns max. |
4 |
| "O"
level in V max. |
Vcc
x 0,1 |
| "1"
level in V min. |
Vcc
x 0,9 |
| input
voltage Vcc in V ± tolerance in % standard |
+
3,3 ± 10 |
| input
voltage Vcc in V / tolerance in % available |
+1,8
± 10 / +2,5 ± 10 / + 3,0 ± 10 |
| input
current at 1,0 ~ 2,5 MHz in mA max. |
15 |
| input
current at 2,51 ~ 20,0 MHz in mA max. |
8 |
| input
current at 20,1 ~ 40,0 MHz in mA max. |
15 |
| input
current at 40,1 ~ 60,0 MHz in mA max. |
22 |
| input
current at 60,1 ~ 70,0 MHz in mA max. |
25 |
| input
current at 70,1 ~ 125,0 MHz in mA max. |
30 |
| output
load in pF |
15 |
| start
up time max. in ms |
10 |
| tristate
funcion |
yes |
| enable/disable
delay time in ns max. |
100 |
| stand
by current in µA max. |
10 |

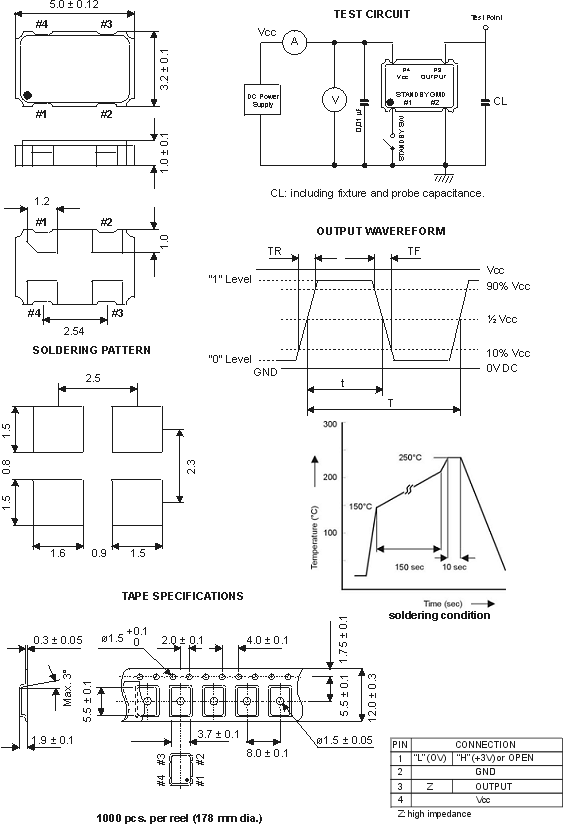

| size
l/w/h in mm |
5,0/3,2/1,0 |
| lead-free |
yes |
| contents
of reel in pcs. |
1000 |
|
|
|
|
|
|
