SPXOCXO-10-100   1,0 ~ 100,0 MHz

Description Value
frequency range in MHz 1,0 ~ 100,0
frequency stability at -20° ~ +70°C in ppm ±50
frequency stability at -40° ~ +85°C in ppm ±100
operating temperature range in °C standard -20 ~ +70
operating temperature range in °C available -40 ~ +85
storage temperature range in °C -50 ~ +125
symmetry at 50% Vdd level in % 40 ~ 60
rise & fall time (max.) 10% ~ 90% Vdd level in ns 5
"O" level VOL in % Vdd max. 10
"1" level VOH in % Vdd min. 90
input voltage (Vdd) in V ± tolerance in % +2,5 ~ +3,3 / ±10
stand-by control voltage (Pin#1) VIH in Vdd min. +2,2
stand-by control voltage (Pin#1) VIL in Vdd max. +0,8
supply voltage in V -0,5 ~ +7,0
input current (Pin#1 = Open or VIH) in mA max. 10
output load at CMOS in pF 15
start up time max. in ms 10
disable delay time in ns max. 150
enable delay time in ms max. 10
stand by current (Pin#1=VIL) in µA max. 50
aging at +25°C/year in ppm max. ±5
jitter s. datasheet
lead-free yes

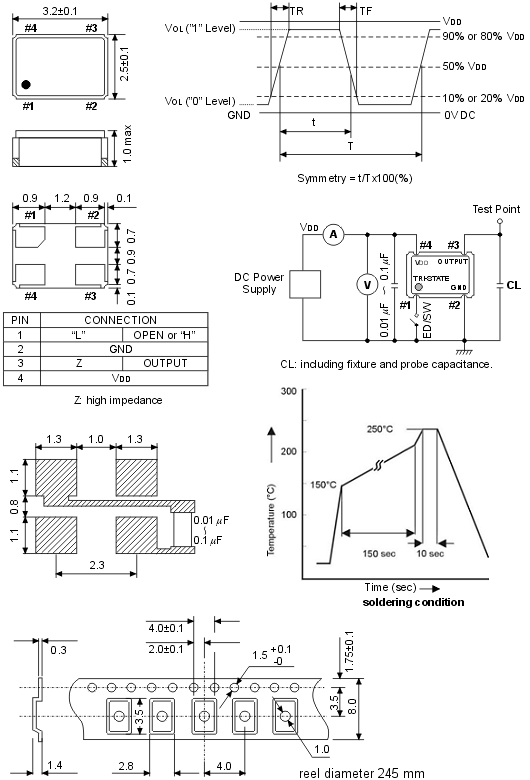

size l/w/h in mm 3,2 / 2,5 / 1,0
contents of reel in pcs. 1000
