| Description |
Value |
| frequency
range in kHz |
8,0 ~ 150,0 |
|
mode |
fundamental |
|
mode |
3. overtone |
|
operating temperature range in °C |
-20 ~ +70 |
|
operating temperature range in °C |
-40 ~ +85 |
|
operating temperature range in °C |
-40 ~ +105 |
|
frequency tolerance at +25°C standard in ppm |
± 50 |
|
temperature tolerance at -20° ~ +70°C stand. in ppm |
±50 |
|
temperature tolerance at -20° ~ +70°C avail. in ppm |
±10 ~ ±50 |
|
temperature tolerance at -40° ~ +85°C stand.in ppm |
±100 |
|
temperature tolerance at -40° ~ +85°C avail. in ppm |
±10~ ±100 |
|
temperature tolerance at -40° ~ +105°C stand.in ppm |
±120 |
|
temperature tolerance at -40° ~ +105°C avail. in ppm |
±30 ~ ±120 |
|
load capacitance CL,
standard in pF |
16 |
|
load capacitance CL,
available in pF |
10 ~ 20 |
|
series resonance R1 8,0
~ 11,99 MHz fundamental in Ohm max |
80 |
|
series resonance R1 12,0
~ 80,0 MHz fundamental in Ohm max |
50 |
|
series resonance R1 40,0 ~
150,0 MHz 3rd overtone in Ohm max. |
100 |
|
aging (first year) in ppm |
±2 |
|
drive level µW max. |
0,1 |
|

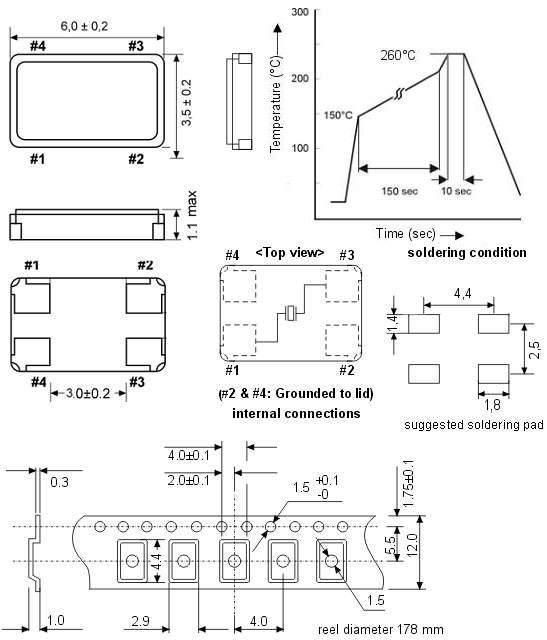

size l/w/h in mm |
6,0/3,5/1,1 |
|
RoHS since production start |
yes |
|
contents of reel in pcs. |
1000 |
