CS-6 16,0 ~ 80,0 MHz

◆CRYSTAL→CS-6 16,0 ~ 80,0 MHz

Description	Value
frequency range in kHz	16,0 ~ 80,0
mode	fundamental
operating temperature range in °C	-20 ~ +70
operating temperature range in °C	-40 ~ +85
operating temperature range in °C	-40 ~ +105
frequency tolerance at +25°C standard in ppm	±30
frequency tolerance at +25°C standard in ppm	±10 ~ ± 50
temperature tolerance at -20° ~ +70°C stand. in ppm	±50
temperature tolerance at -20° ~ +70°C avail. in ppm	±10 ~ ±50
temperature tolerance at -40° ~ +85°C stand.in ppm	±100
temperature tolerance at -40° ~ +85°C avail. in ppm	±25 ~ ±100
temperature tolerance at -40° ~ +105°C stand.in ppm	±150
temperature tolerance at -40° ~ +105°C avail. in ppm	±50 ~ ±120
load capacitance C_L, standard in pF	10
load capacitance C_L, available in pF	8 ~ 16
series resonance R₁ 16,0 ~ 20,0 MHz fundamental in Ohm max	120
series resonance R₁ 20,1 ~ 30,0 MHz fundamental in Ohm max	100
series resonance R₁ 30,1 ~ 80,0 MHz fundamental in Ohm max	50
aging (first year) in ppm	±5
shunt capacitance Co in pF max.	5,0
drive level µW max.	50

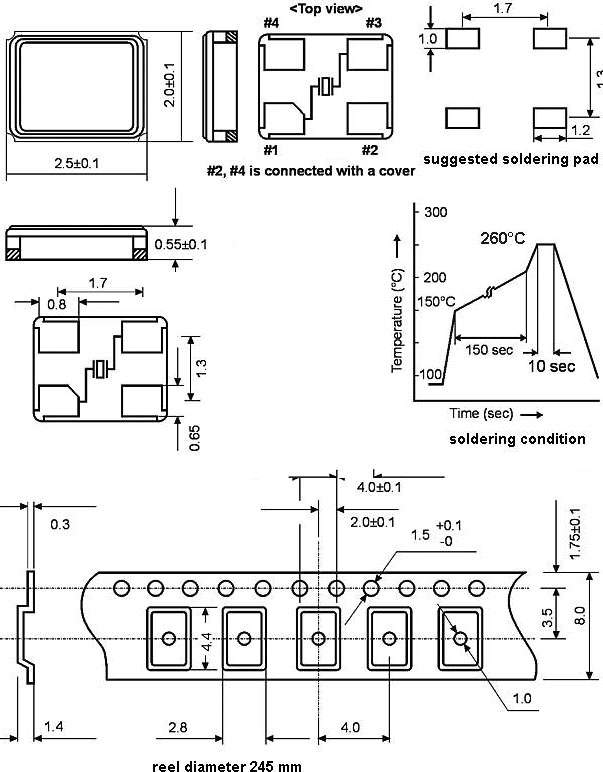

size l/w/h in mm	2,5/2,0/0,55
RoHS since production start	yes
contents of reel in pcs.	3000
