CRYSTALCS-4   26,0 ~ 80,0 MHz

Description Value
frequency range in kHz 26,0 ~ 80,0
mode fundamental
operating temperature range in °C -20 ~ +70
operating temperature range in °C -40 ~ +85
frequency tolerance at +25°C ± 3°C standard in ppm ±30
frequency tolerance at +25°C ± 3°C standard in ppm ±10 ~ ± 50
temperature tolerance at-40° ~ +85°C in ppm/°C2 typical -0,035
temperature tolerance at -20° ~ +70°C stand. in ppm ±50
temperature tolerance at -20° ~ +70°C avail. in ppm ±10 ~ ±50
temperature tolerance at -40° ~ +85°C stand.in ppm ±50
temperature tolerance at -40° ~ +85°C avail. in ppm ±50 ~ ±100
load capacitance CL, standard in pF 8
load capacitance CL, available in pF 8 ~ 16
series resonance R1  26,0 ~ 31,99 MHz in Ohm max. 150
series resonance R1 32,0 ~ 37,99 MHz in Ohm max. 100
series resonance R1  38,0 ~ 80,0 MHz in Ohm max. 80
aging (first year) in ppm ±2
shunt capacitance Co in pF max. 5,0
drive level µW max. 200

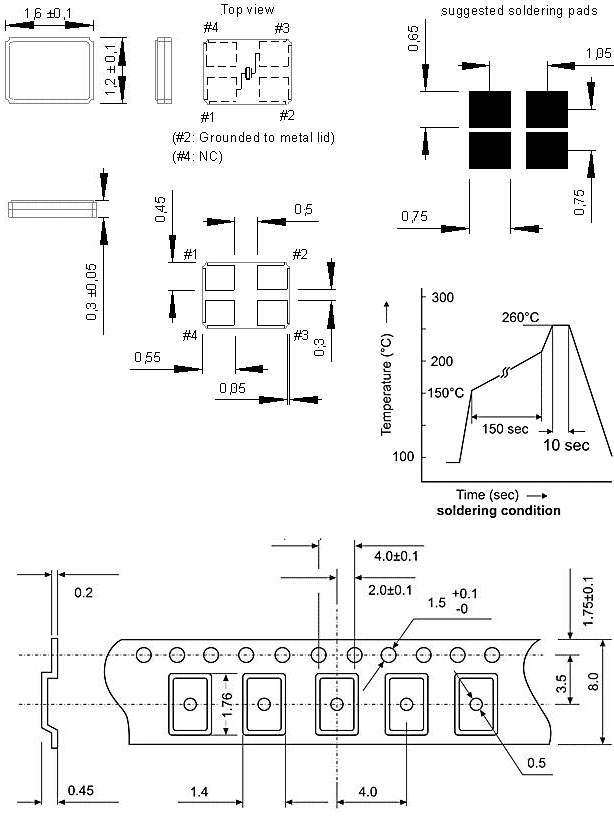

size l/w/h in mm 1,6/1,2/0,3
RoHS since production start yes
contents of reel in pcs. 3000
