| Description |
Value |
| frequency
range in kHz |
32,768 |
| operating
temperature range in °C |
-40
~ +85 |
|
frequency tolerance at +25°C ± 3°C in ppm |
± 20 (±0,002%) |
|
temperature tolerance at-40° ~ +85°C in ppm/°C2
typical |
-0,035 |
|
storage temperature range in °C |
-55 ~ +125 |
|
turnover temperature °C |
+25 ±5 |
|
capacitance ratio (CO/C1) typ. |
440 |
|
load capacitance CL |
12,5 pF ± 1,0 pF |
|
motional capacitance (C1 pF
typ. |
0,0036 |
|
series resonance R1 in Ohm
max. |
80k |
|
aging (df/F) (first year) at 25°C ± 3°C ppm max. |
± 3 |
|
shunt capacitance Co in pF max. |
1,6 typ. |
|
drive level µW max. |
0,1 typ. (1,0 max.) |
|
quality factor (Q) min. |
20000 |
|
reflow soldering cond. at +260°C in seconds max. |
10 (2 times max.) |
|

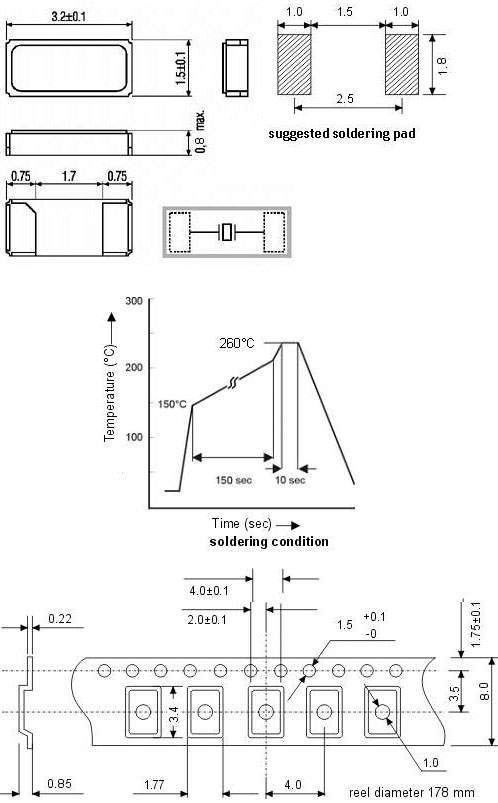

size l/w/h in mm |
3,2 / 1,5 / 0,8 |
|
RoHS since production start |
yes |
|
contents of reel in pcs. |
3000 |
|
|
|
|
|
|
