CRYSTALCS-6-100      6,0 ~ 100,0 MHz

Description Value
frequency range in MHz 6,0 ~ 100,0
mode fundamental
mode 3. overtone
mode 5. overtone
operating temperature range in °C -20 ~ +70
operating temperature range in °C -40 ~ +85
operating temperature range in °C -40 ~ +105
frequency tolerance at +25°C standard in ppm ±10 ~±50
frequency tolerance at +25°C in ppm ±10 ~ ±50
temperature tolerance at -20° ~ +70°C in ppm ±10 ~ ±30
temperature tolerance at -20° ~ +70°C stand. in ppm ±50
temperature tolerance at -40° ~ +85°C in ppm ±20 ~ ±50
temperature tolerance at -40° ~ +85°C stand.in ppm ±100
temperature tolerance at -40° ~ +105°C in ppm ±30 ~ ±80
temperature tolerance at -40° ~ +105°C stand.in ppm ±120
capacity load CL, standard in pF 16
capacity load CL, available in pF 12 ~ 20
series resonance R1 6,0 ~ 7,00 MHz in Ohm max. 120
series resonance R1 7,1 ~ 10,99 MHz in Ohm max. 100
series resonance R1 11,0 ~ 13,99 MHz in Ohm max. 50
series resonance R1 14,0 ~ 15,99 MHz in Ohm max. 40
series resonance R1 16,0 ~ 40,50 MHz in Ohm max. 30
series resonance R1 35,0 ~ 39,99 MHz 3rd overtone in Ohm max. 100
series resonance R1 40,0 ~ 49,99 MHz 3rd overtone in Ohm max. 80
series resonance R1 50,0 ~ 90,0 MHz 3rd overtone in Ohm max. 50
series resonance R1 90,0 ~ 260,0 MHz 5th overtone in Ohm max. 100
aging (first year) standard in ppm ±5
aging (first year) possible in ppm ±1
shunt capacitance Co in pF max. 7,0
drive level in mW 0,05

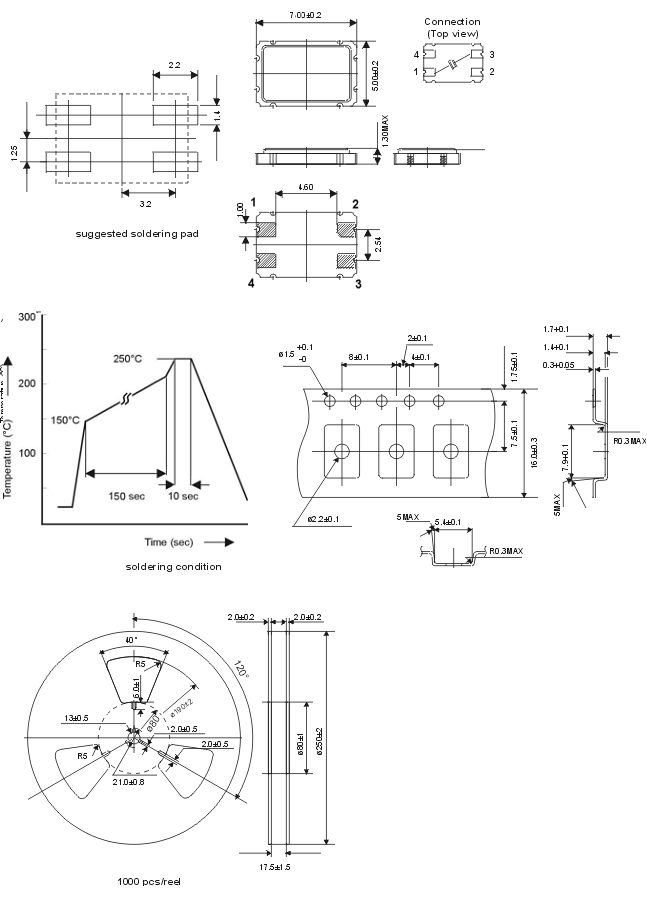

size l/w/h in mm 7,0/5,0/1,3
lead-free yes
contents of reel in pcs. 1000
