| Description |
Value |
| frequency
range in kHz |
32,768 |
| operating
temperature range in °C |
-40
~ +85 |
|
frequency tolerance at +25°C ± 3°C in ppm |
± 20 (±0,002%) |
|
temperature tolerance at-40° ~ +85°C in ppm/°C2
typical |
-0,03 ±0,01 |
|
storage temperature range in °C |
-55 ~ +125 |
|
turnover temperature °C |
+25 ±5 |
|
load capacitance CL |
12,5 pF ± 1,0 pF |
|
motional capacitance (C1 pF
typ. |
7,0 |
|
series resonance R1 in Ohm
max. |
90k |
|
aging (df/F) (first year) at 25°C ± 3°C ppm max. |
± 5 |
|
shunt capacitance Co in pF max. |
1,3 typ. |
|
drive level µW max. |
0,5 typ. |
|
reflow soldering cond. at +260°C in seconds max. |
10 |
|

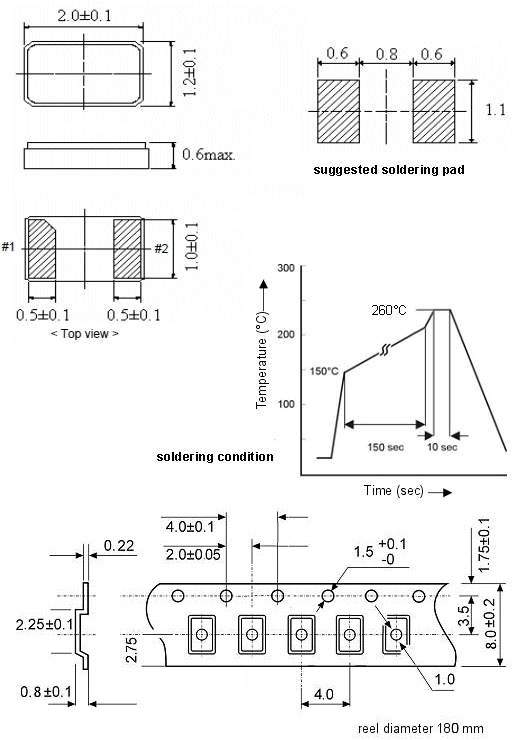

size l/w/h in mm |
2,0 / 1,2 / 0,6 |
|
RoHS since production start |
yes |
|
contents of reel in pcs. |
3000 |
|
|
|
|
|
|
