| Description |
Value |
| frequency
range in MHz |
9,80
~ 50,0 |
| mode |
fundamental |
| mode |
3.
overtone |
| operating
temperature range in °C |
-20
~ +70 |
| operating
temperature range in °C |
-40
~ +85 |
| operating
temperature range in °C |
-40
~ +105 |
| frequency
tolerance at +25°C in ppm |
±30 |
| temperature
tolerance at -20° ~ +70°C in ppm |
±10
~ ±30 |
| temperature
tolerance at -20° ~ +70°C stand. in ppm |
±50 |
| temperature
tolerance at -40° ~ +85°C in ppm |
±30
~ ±50 |
| temperature
tolerance at -40° ~ +85°C stand.in ppm |
±100 |
| temperature
tolerance at -40° ~ +105°C in ppm |
±50
~ ±80 |
| temperature
tolerance at -40° ~ +105°C stand.in ppm |
±120 |
| capacity
load CL, standard in pF |
16 |
| capacity
load CL, available in pF |
12
~ 20 |
| series
resonance R1 9,80 ~ 11,99 MHz in Ohm
max. |
60 |
| series
resonance R1 12,0 ~ 50,0 MHz in Ohm
max. |
40 |
| aging
(first year) in ppm |
±5 |
| shunt
capacitance Co in pF max. |
7,0 |
| drive
level in mW |
0,05 |

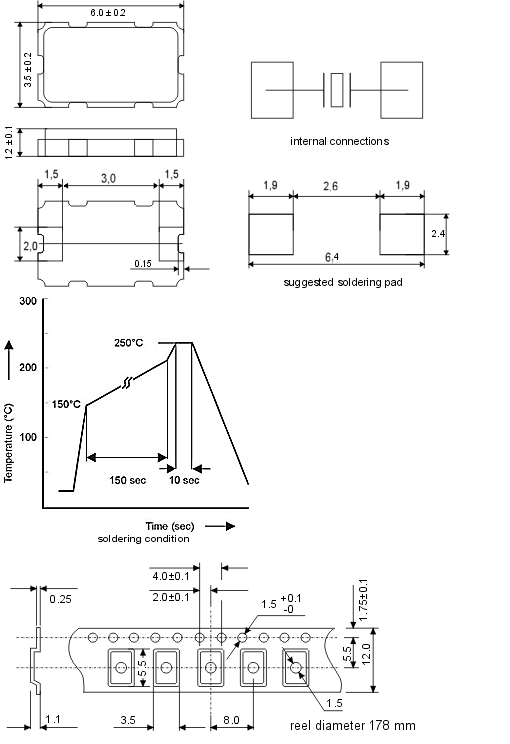

| size
l/w/h in mm |
6,0/3,5/1,2 |
| lead-free |
yes |
| contents
of reel in pcs. |
1000 |
