CRYSTALCS-12-50   12,0 ~ 50,0 MHz

Description Value
frequency range in MHz 12,0 ~ 50,0
mode fundamental
operating temperature range in °C standard -20 ~ +70
operating temperature range in °C available -40 ~ +85
operating temperature range in °C available -40 ~ 105
frequency tolerance at +25°C standard in ppm ±10 ~±50
temperature tolerance at -20° ~ +70°C stand. in ppm ±50
temperature tolerance at -20° ~ +70°C avail. in ppm ±10 ~ ±50
temperature tolerance at -40° ~ +85°C stand.in ppm ±100
temperature tolerance at -40° ~ +85°C avail. in ppm ±20 ~ ±100
temperature tolerance at -40° ~ +105°C avail. in ppm ±120
temperature tolerance at -40° ~ +105°C stand.in ppm ±30 ~ ±120
capacity load CL, standard in pF 10 ~ 20
capacity load CL, available in pF 10 ~ 20
series resonance R1 12,0 ~ 16,0 MHz fundamental in Ohm max 100
series resonance R1 16,1 ~ 20,0 MHz fundamental in Ohm max 60
series resonance R1 20,1 ~ 50,0 MHz fundamental in Ohm max 40
aging (first year) in ppm ±2
shunt capacitance Co in pF max. 5,0
drive level in mW max. 0,1

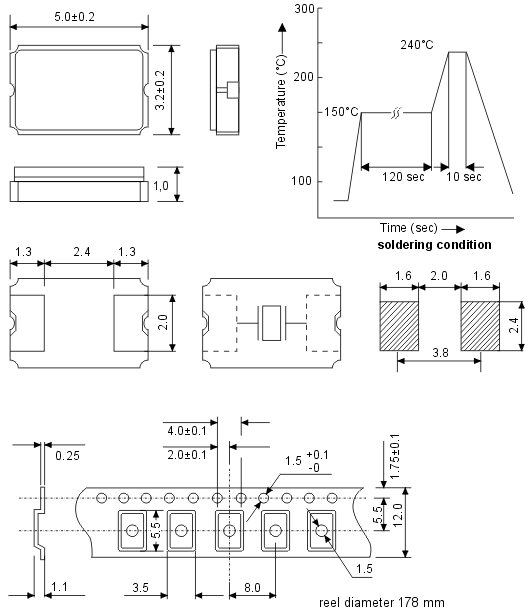

size l/w/h in mm 5,0 / 3,2 / 1,0
contents of reel in pcs. 1000
