CRYSTALCS-12-60   12,0 ~ 60,0 MHz

Description Value
frequency range in MHz 12,0 ~ 60,0
mode fundamental
operating temperature range in °C standard -20 ~ +70
operating temperature range in °C available -40 ~ +85
operating temperature range in °C available -40 ~ +105
frequency tolerance at +25°C standard in ppm ±50
frequency tolerance at +25°C available in ppm ±10 ~ ±50
temperature tolerance at -20° ~ +70°C stand. in ppm ±50
temperature tolerance at -20° ~ +70°C avail. in ppm ±10 ~ ±50
temperature tolerance at -40° ~ +85°C stand.in ppm ±100
temperature tolerance at -40° ~ +85°C avail. in ppm ±20 ~ ±100
temperature tolerance at -40° ~ +105°C stand.in ppm ±120
temperature tolerance at -40° ~ +105°C avail. in ppm ±30 ~ ±120
capacity load CL, standard in pF 16
capacity load CL, available in pF 10 ~ 20
series resonance R1 12,0 ~ 15,99 MHz in Ohm max. 80
series resonance R1 16,0 ~ 60,0 MHz in Ohm max. 50
aging (first year) in ppm ±5
shunt capacitance Co in pF max. 5,0
drive level in mW max. 0,1
lead-free yes
contents of reel in pcs. 2000

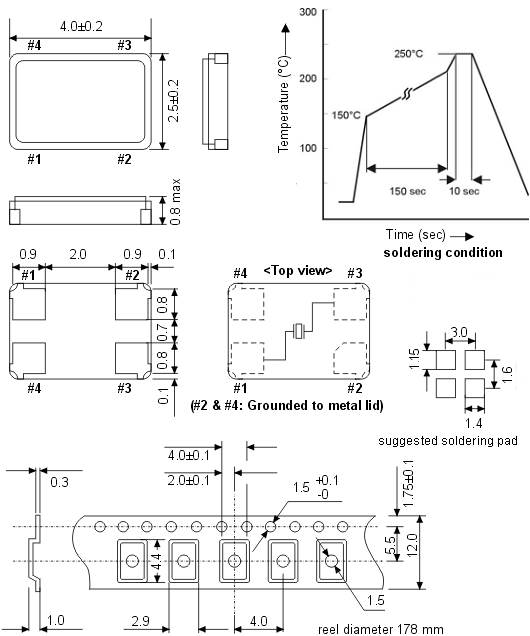

size l/w/h in mm 4,0 / 2,5 / 0,8
