| Description |
Value |
| frequency
range in MHz |
16,0
~ 60,0 |
| mode |
fundamental |
| operating
temperature range in °C |
-20
~+70 |
| operating
temperature range in °C |
-40
~ +85 |
| operating
temperature range in °C |
-40
~ +105 |
| frequency
tolerance at +25°C standard in ppm |
±50 |
| frequency
tolerance at +25°C available in ppm |
±10
~ ± 50 |
| temperature
tolerance at -20° ~ +70°C stand. in ppm |
±50 |
| temperature
tolerance at -20° ~ +70°C avail. in ppm |
±10
~ ±50 |
| temperature
tolerance at -40° ~ +85°C stand.in ppm |
±100 |
| temperature
tolerance at -40° ~ +85°C avail. in ppm |
±20
~ ±100 |
| temperature
tolerance at -40° ~ +105°C stand.in ppm |
±120 |
| temperature
tolerance at -40° ~ +105°C avail. in ppm |
±30
~ ±120 |
| capacity
load CL, standard in pF |
16 |
| capacity
load CL, available in pF |
7
~ 20 |
| series
resonance R1 16,0 ~ 30,0 MHz in Ohm
max. |
100 |
| series
resonance R1 30,0 ~ 60,0 MHz in Ohm
max. |
50 |
| aging
(first year) in ppm |
±5 |
| shunt
capacitance Co in pF max. |
5,0 |
| drive
level in mW max. |
0,1 |

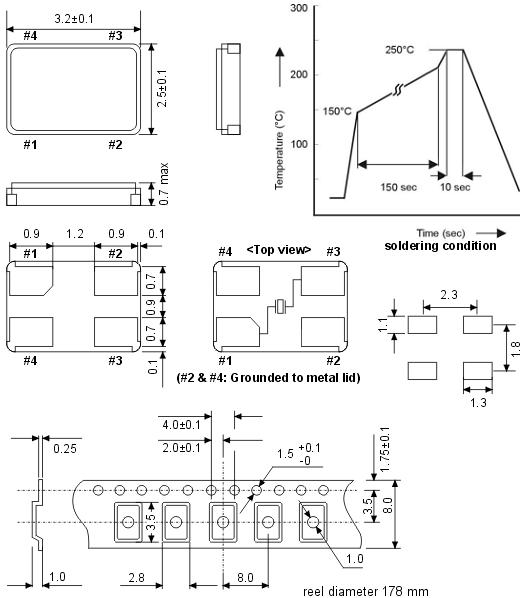

| size
l/w/h in mm |
3,2/2,5/0,7 |
| lead-free |
yes |
| contents
of reel in pcs. |
3000 |
