CRYSTALCS-327K   32,768 kHz

Description Value
frequency in kHz 32,768
operating temperature range in °C -20 ~ +70
operating temperature range in °C -40 ~ +85
frequency tolerance at +25°C standard in ppm ±30
temperature tolerance at-20° ~ +70°C in ppm/°C2 typical -0,034 ±0,006
temperature tolerance at-40° ~ +85°C in ppm/°C2 typical -0,034 ±0,006
capacity load CL in pF 12,5
series resonance R1 in Ohm max. 50k
aging (first year) in ppm ±5
shunt capacitance Co in pF max. 2
drive level in mW 0,01

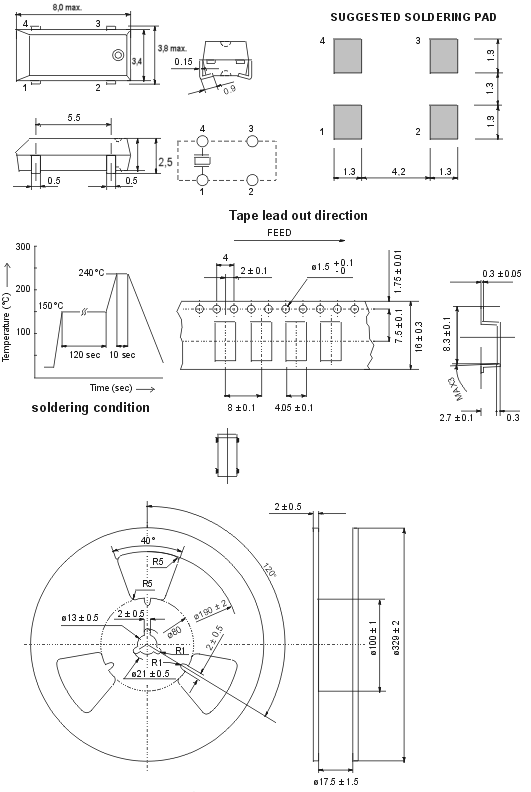

size l/w/h in mm 8,0/3,8/2,5
contents of reel in pcs. 1000/3000
