CRYSTALCS-327K   32,768 kHz

Description Value
frequency in kHz 32.768
operating temperature range in °C standard -20 ~ +70
operating temperature range in °C available -40 ~ +85
frequency tolerance at +25°C in ppm ±20
temperature tolerance at-20° ~ +70°C in ppm/°C2 typical -0,035
temperature tolerance at-40° ~ +85°C in ppm/°C2 typical -0,035
capacity load CL in pF 12,5
series resonance R1 in Ohm max. 65k
aging (first year) in ppm ±3
shunt capacitance Co in pF max. 0,8
drive level in mW 0,01
contents of reel in pcs. 3000

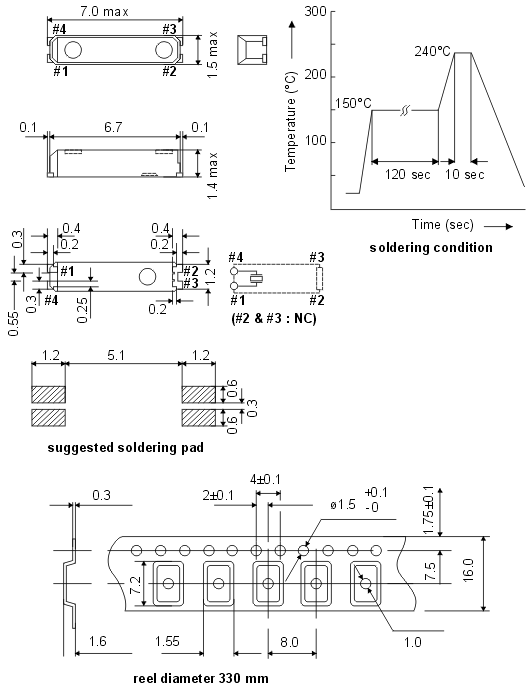

size l/w/h in mm 7,0 / 1,5 /
